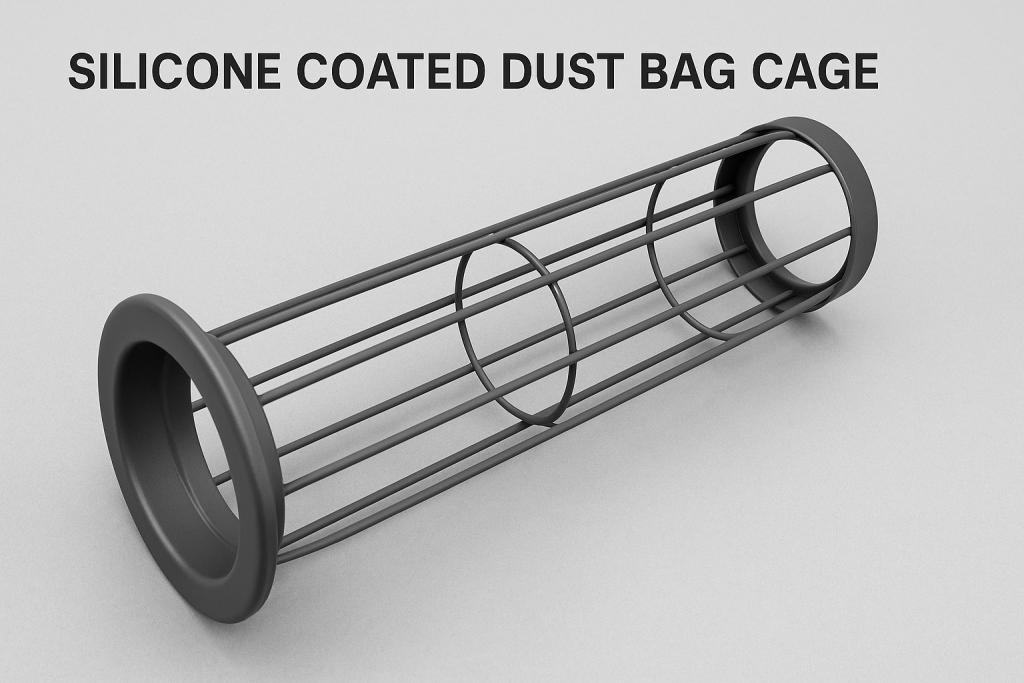

Silicone Coated Dust Bag Cages

Silicone coated dust bag cages are enhanced versions of standard filter bag cages, designed specifically for use in harsh industrial environments. By applying a special silicone coating on the surface of carbon steel or galvanized cages, the product achieves exceptional performance in terms of corrosion resistance, heat resistance, and abrasion resistance.

This innovative coating enables the cages to withstand aggressive flue gases and high-temperature conditions, making them particularly suitable for desulfurization systems and dust removal equipment in power plants. In many cases, silicone coated cages can even serve as a cost-effective alternative to stainless steel filter bag cages.

Application Scenarios

Silicone coated cages are engineered for use in demanding filtration environments where traditional cages fail due to corrosion or thermal degradation. They are especially beneficial in:

  • Thermal power plants – flue gas desulfurization (FGD) systems
  • Waste-to-energy plants – high-sulfur and acidic dust environments
  • Chemical plants – dusty gas streams with corrosive vapors
  • Cement kilns and smelting operations – intermittent high-temperature emissions
  • Glass and ceramics industry – fine particle collection under elevated heat

These cages are generally matched with PTFE, P84, or fiberglass filter bags to withstand aggressive operating conditions.

Key Advantages

FeatureBenefit
Silicone Coating ProtectionExcellent resistance to acid, alkali, and moisture corrosion
High Temperature ResistanceStable under continuous exposure up to 280°C or intermittent 300°C
Abrasion ResistanceReduces wear caused by frequent pulsing and air backflushing
Cost SavingReplaces stainless steel cages at a lower price point with similar durability
Extended Service LifePrevents cage oxidation, paint flaking, or bag damage caused by rust
Custom Coating ThicknessSilicone layer tailored based on application and cage material

Technical Specifications

ItemDetails
Base MaterialCarbon Steel / Galvanized Steel
CoatingHigh-temperature resistant silicone coating
Coating Thickness20–100 μm (customizable)
Maximum Operating TemperatureContinuous ≤ 280°C, Intermittent ≤ 300°C
Cage TypesRound / Star / Oval / Split / Top-Load / Bottom-Load
Wire Diameter3.0 – 5.0 mm
Number of Vertical Wires8–24 (based on diameter and structural strength)
Connection OptionsFlange / Venturi / Collar / Snap Band
Corrosion ResistanceStrong – suitable for acidic and moist environments
Recommended Bag TypesPTFE, P84, Fiberglass

Silicone Coated Dust Bag Cages offer a robust, economical, and high-performance solution for dust filtration systems operating under corrosive and thermal stress. By providing extended life and resistance to rust, they significantly reduce the maintenance costs and improve the overall efficiency of dust collection systems—particularly in power generation and chemical industries.

If you’re looking to replace stainless steel cages without compromising performance, silicone coated cages are the ideal alternative.
