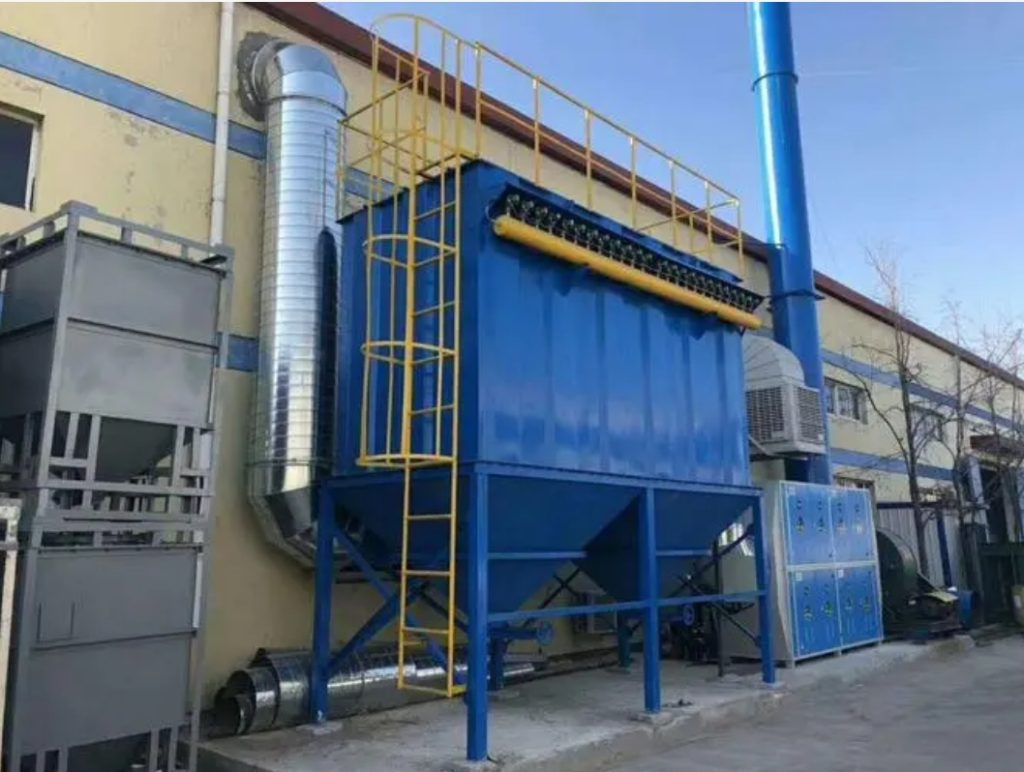

64-5 Air Box Pulse Jet Baghouse Dust Collector

The 64-5 air box pulse jet dust collector is a high-performance, compartmentalized baghouse system designed for efficient and continuous dust filtration in various heavy-duty industrial environments. With 5 compartments and 64 filter bags per compartment (a total of 320 bags), this model is ideal for medium to large-scale dust control operations.

✅ Application Scenarios

The 64-5 dust collector is widely used in industries with high dust concentrations and demanding environmental standards, including:

  • Cement Plants – raw material processing, clinker coolers, finish mills, packaging systems
  • Steel and Metallurgy – sintering, furnace dust, and cutting lines
  • Power Plants and Boilers – flue gas treatment and ash handling
  • Chemical & Petrochemical Industries – corrosive and fine dust applications
  • Grain, Food, and Feed Industries – dry bulk handling and explosion-prone areas

Its robust design allows it to operate in high-temperature, high-humidity, and corrosive environments, maintaining stable performance and meeting strict environmental compliance requirements.

📊 Technical Specification

ParameterValueDescription
Airflow Capacity~23,000 m³/hSuitable for medium/large operations
Number of Filter Bags320 (64 bags × 5 chambers)Multi-compartment design
Filter Bag Length3,000 mmLong bag configuration
Total Filtration Area~420 m²Large effective surface area
Dust Removal Efficiency≥ 99.9%High-efficiency filtration
Outlet Dust Emission≤ 50 mg/Nm³Complies with emission standards
Cleaning MethodOffline compartmental pulse jetEnergy-efficient and thorough
Structural LayoutCompact, modularEasy installation and maintenance

🌟 Key Advantages Over Traditional Baghouse Collectors

1. Offline Pulse Cleaning – No Interruption to Operation

Each chamber is isolated and cleaned one at a time, allowing the remaining chambers to keep working. This results in stable airflow and improved dust removal efficiency.

2. Compact Design – Saves Space and Civil Costs

The modular structure and high bag density reduce the footprint, minimizing the construction and maintenance costs.

3. Powerful Pulse Cleaning – Prolongs Filter Bag Life

Equipped with large-diameter pulse valves and efficient air distribution, the cleaning process is strong yet smooth, reducing wear and extending bag service life.

4. Meets Stringent Emission Standards

The system is capable of achieving outlet dust concentrations below 50 mg/Nm³, making it compliant with the latest environmental regulations.

5. Ideal for High-Dust and Hazardous Conditions

Its advanced dust cleaning and compartmentalized operation make it well-suited for heavy-load conditions such as kiln dust, chemical powder, or explosive dust environments.
