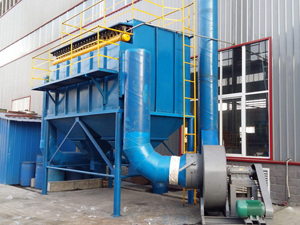

High-Temperature Baghouse Dust Collector for Medium-Frequency Furnace

Medium-frequency furnaces (MFFs) are widely used in steel foundries, metal recycling, and precision casting. However, the smelting process produces large amounts of high-temperature dust and fumes, which pose significant threats to both environmental compliance and worker safety.

The high-temperature baghouse dust collector is specifically designed to handle these harsh conditions. With filtration efficiency ≥ 99%, it effectively captures fine and submicron particulates and ensures clean gas discharge—often below 30 mg/m³.

🏭 Application Scenarios

  • 1️⃣ Steel melting induction furnaces (medium-frequency)
  • 2️⃣ Casting operations with intermittent or continuous smelting
  • 3️⃣ Enclosed fume capture systems requiring high-temperature resistance
  • 4️⃣ Industrial kiln tail gas dust control

📊 Technical Parameters (Example Range)

Filtration Efficiency≥ 99%
Outlet Dust Concentration≤ 30 mg/m³
Operating TemperatureUp to 240°C (can be customized)
Air Volume CapacityFrom a few thousand to 50,000+ m³/h
Filter Bag Material OptionsFiberglass, PTFE (Teflon), P84
Cleaning MethodPulse-jet with PLC programmable controller
Structural DesignModular, insulated steel housing
Control SystemPLC with remote wireless operation

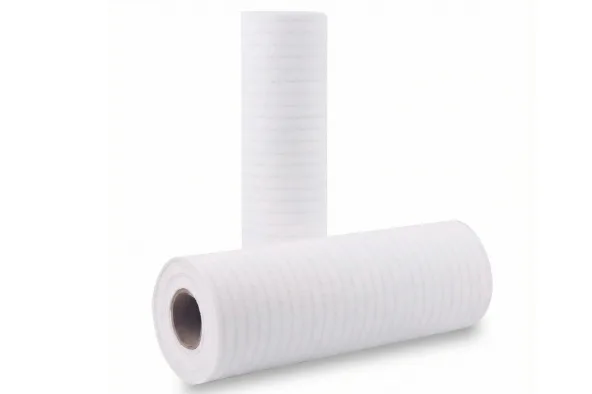

🧰 Recommended Filter Bag Materials

Fiberglass~260°CCost-effective, moderate resistance
PTFE~260°CExcellent chemical & temperature resistance
P84 (Polyimide)~260–280°CSuperior performance in fluctuating temperatures

These materials ensure long service life and high filtration performance in MFF conditions.

✅ Advantages Over Electrostatic and Wet Collectors

  1. High Efficiency for Fine Dust
    Captures even submicron particles better than ESPs or cyclones.
  2. Broad Capacity Range
    Scalable from small foundries to large-scale industrial smelting.
  3. Lower Cost Than Electrostatic Precipitators
    More economical with similar or better filtration results.
  4. Dust-Type Compatibility
    Not sensitive to particle resistivity or shape.
  5. Smart Control System
    Features PLC-based automated cleaning, real-time dust level monitoring, and wireless control for charging cars and ladle cars.

🔧 Furnace Fume Control System Overview

The complete gas treatment setup typically includes:

  • Low-position mobile fume hood
  • Charging system + tapping system
  • Main ducting + settling chamber
  • Cooling air injection
  • ID fan + high-temperature baghouse + exhaust stack

All smelting operations (charging, melting, tapping) occur under the moving fume hood, capturing fumes efficiently from all directions. Unlike local fixed hoods, this system prevents leakage during tapping and improves occupational air quality.

🔒 Corrosion & Condensation Control Measures

To prevent corrosion caused by dew point condensation, the following strategies are used:

  1. Reduce Moisture Content in the Furnace Gas
    Keep gas temperature ≥ 30°C above the dew point.
  2. Minimize Air Leakage in the Dust Collector
    Use positive pressure systems and optimize sealing (e.g., dual manhole doors with silicone gaskets).
  3. Enhance System Sealing
    Full welds on casing, improved duct and manhole design.
  4. Limit Start/Stop Cycles
    Frequent shutdowns lower internal temperatures below the dew point; plan fewer interruptions and ensure residual heat retention.
  5. Improve Thermal Insulation
    Use thick, high-quality insulation with aluminum or steel cladding. Poor insulation can lead to external condensation and structural corrosion.
