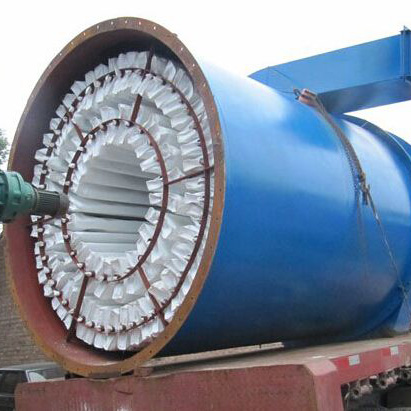

ZC Mechanical Rotary Reverse Air Flat Bag Dust Collector

The ZC Series Mechanical Rotary Reverse Air Flat Bag Dust Collector is a highly efficient, reliable, and structurally advanced dust collection system developed based on years of domestic engineering experience. With a proven track record across metallurgy, machinery, electric power, and other industries, the ZC series ensures low emission concentration, stable operation, and minimal maintenance.

Its cylindrical body ensures uniform stress distribution and high explosion resistance. By utilizing mechanical rotary arms and a high-pressure blower for reverse air cleaning, it overcomes the limitations of compressed air sources and achieves excellent dust removal efficiency, even in remote or cold areas.

Key Features

  • Reverse air cleaning by rotary arm with fan-driven circulation
  • Cylindrical shell design for better structural stability and explosion resistance
  • Suitable for fine particulate collection in a variety of industries
  • Independent control of cleaning cycle via differential pressure sensor or manual switch
  • Filter bag life extension through energy-saving cleaning logic
  • Capable of indoor or outdoor installation

Working Principle

  1. Filtration Phase
    Dust-laden air enters tangentially into the upper space of the filtration chamber. Due to the cyclone effect, coarse particles are separated and fall directly into the hopper.
    Finer particles are captured by the outer surface of filter bags, and the purified air passes through the bags into the clean air plenum and is discharged by the fan.
  2. Cleaning Phase
    As dust accumulates, differential pressure increases. When the upper threshold is reached, the reverse air fan starts (either automatically or manually), blowing compressed air through the rotating arm nozzle into the filter bags.
    This reverses the pressure inside the bags, causing them to flex and dislodge the dust into the hopper below.
    The rotary arm is divided into zones to perform sectional cleaning, enhancing cleaning efficiency while conserving energy.

Structural Components

  • Upper housing: Top cover, rotary arm drive, clean air plenum, inspection ports, outlet duct
  • Middle housing: Filter plate, bags, cages, inlet duct, and access doors
  • Lower housing: Dust hopper, star-type discharge valve, base support
  • Reverse air system: Rotary arm, air nozzles, blower, fan duct, reducer drive

Optional accessories such as the rotary fan, control system, ladder platforms, and duct foundation are supplied according to site needs.

Applications

Ideal for handling dust with:

  • High temperature
  • High concentration
  • Fine particles

Applicable industries:

  • Metallurgy
  • Casting
  • Cement
  • Mining
  • Power
  • Chemical
  • Food processing

Model Selection Guide

ModelFilter Area (m²)Air Volume (m³/h)Bag Length (m)Bag QtyEfficiencyResistance (Pa)Dimensions (mm)Weight (kg)
ZC-24/2 A382280–34202.024>99%>120Φ1690×43701916
ZC-24/2 B384560–57002.024>99%>120Φ1690×43701916
ZC-24/3 A573420–51303.024>99%>120Φ1690×53702086
ZC-24/3 B576840–85503.024>99%>120Φ1690×53702086
ZC-24/4 A794740–71104.024>99%>120Φ1690×63702263
ZC-24/4 3B799480–118504.024>99%>120Φ1690×63702263
ZC-72/2 A1146840–102602.072>99%>120Φ2530×50304150
ZC-72/2 B11413650–171002.072>99%>120Φ2530×50304150
ZC-72/3 A17010200–155003.072>99%>120Φ2530×60304868
ZC-72/3 B17020400–255003.072>99%>120Φ2530×60304868
ZC-72/4 A22813680–205204.072>99%>120Φ2530×70305587
ZC-72/4 B22827360–342004.072>99%>120Φ2530×70305587
