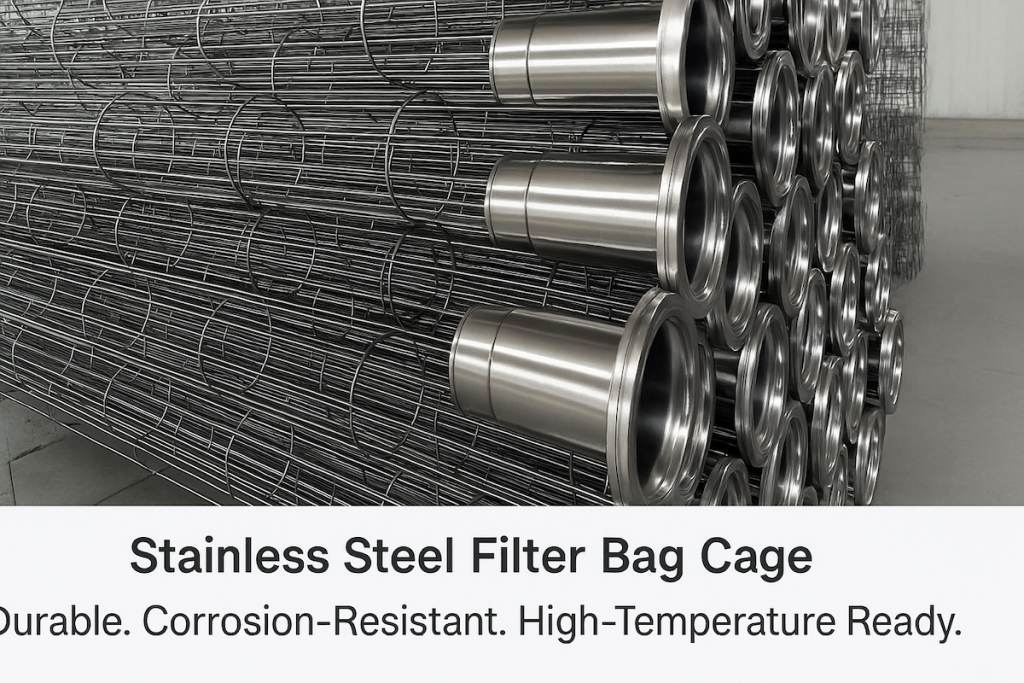

Stainless steel filter bag cages are the structural backbone of industrial dust collection systems, designed to support filter bags and ensure optimal filtration performance in harsh environments. These cages are widely used in industries such as cement, steel, chemicals, waste incineration, and thermal power plants, where both high temperature and corrosive conditions are present.
🔧 Key Features & Benefits
Superior Corrosion Resistance Made from high-grade 304 or 316 stainless steel, these cages are highly resistant to acidic or alkaline gases, extending the lifespan of your filtration system in aggressive chemical environments.
High Temperature Tolerance Stainless steel cages can withstand operating temperatures far beyond mild steel alternatives, making them ideal for high-heat applications up to 400°C or more, depending on the grade.
Strong Mechanical Support Their robust welded structure ensures filter bags retain their shape and avoid collapse or premature failure, even under high airflow and pulsing conditions.
Low Maintenance Stainless steel requires minimal upkeep and is not prone to rusting or structural deformation over time, reducing the need for frequent replacement.
Customizable Design Available in various ring spacings, diameters, venturi options, and top/bottom connections to match your baghouse collector design
🛠️ Typical Specifications
Parameter
Description
Material
SS304, SS316 (on request)
Finish
Polished or pickled
Ring Spacing
100mm / 150mm
Diameter
120mm, 125mm, 150mm, or as requested
Venturi Option
Optional, based on collector design
Length
Customizable: 1m ~ 6m
Weld Method
Spot welded or continuous arc welding
🏭 Application Scenarios
Stainless steel bag cages are commonly used in:
Waste incineration plants
Chemical processing facilities
Cement kilns
Coal-fired boilers
Biomass combustion units
Steel industry furnaces
Their corrosion resistance and thermal durability make them indispensable in applications where standard carbon steel cages would fail prematurely.
📩 Looking for custom-made stainless steel filter bag cages for your baghouse system? Contact Omela Filtration today for expert consultation and reliable filtration solutions tailored to your industry.
